Build Logic Pro Smart Controls That Actually Work

Want to make your synths sound amazing in less time?

Start by ditching the endless plugin windows and create your own Smart Controls—custom macro knobs that control your favorite effects from a single place.

In this post, I’ll show you how to design a custom Smart Controls setup in Logic Pro that you can use again and again. You’ll build it once, save it as a preset, and never fiddle with plugin interfaces mid-session again.

Let’s get your hands dirty.

Step 1: Know Your Go-To Effects

Before you even open Logic, take two minutes and write down which effects you touch the most when working with synths.

Are you constantly reaching for a low-pass filter to shape the tone? Maybe a tremolo to add movement? A reverb to push things back in the mix?

Write down the effect types, but don’t stop there. Get specific.

For example:

• HPF cutoff frequency
• LPF cutoff
• Pre/post distortion drive
• Delay feedback
• Reverb wet/dry mix
• Output gain

The more precise you are, the faster this Smart Control setup will feel like home.

Step 2: Set Up Your Channel Strip

Now let’s build the foundation.

1. Open Logic Pro and create a new Software Instrument track.
2. Load a synth you use often—say, Retro Synth or Alchemy.
3. In the channel strip, start stacking your favorite effects:
   • EQ
   • AutoFilter
   • Distortion
   • Reverb (e.g., ChromaVerb)
   • Delay (Tape Delay, Echo, whatever suits your style)
4. Optional but recommended: Add a MIDI effect like Arpeggiator at the top of the chain. It pairs beautifully with modulated synth tones.

Don’t worry about fine-tuning these effects yet. Just load them in and keep moving.

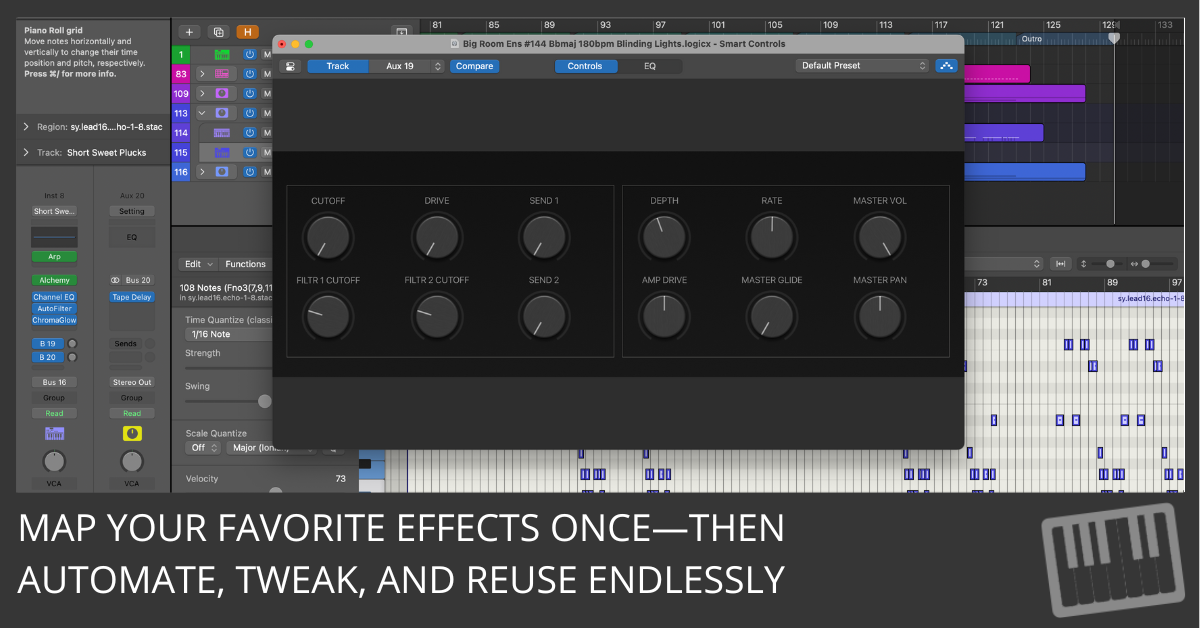

Step 3: Open Smart Controls and Get in Position

Time to access the brains of the operation.

1. Press B to open the Smart Controls panel at the bottom of the screen.
2. Click the Show Inspector button (top left of the panel) to open the Inspector.
3. In the Inspector, make sure you’re on the Track tab—not “Aux” or “Master.”
4. Choose a layout that gives you breathing room. Modern Black 12 works great—it gives you 12 knobs and toggle buttons.

This is where all the magic happens.

💡 Want to take your Logic Pro skills even further?

Everything you just learned about Smart Controls is just one small piece of what’s inside Logic Pro For Dummies (3rd Edition).

It’s the ultimate guide for producers who want to move fast, work smart, and master every corner of Logic—without wasting time on guesswork.

👉 Grab your copy here

Step 4: Link Knobs to Plugin Parameters

Ready to assign your Smart Controls?

Here’s how to connect them to real plugin knobs:

1. Click “Learn” in the Smart Control Inspector.
2. Click a Smart Control knob in the interface (like “Knob 1”).
3. Now move the knob you want to control in your plugin (e.g., filter cutoff in AutoFilter).
4. That Smart Control is now linked. Boom.

Repeat this process for each control, such as cutoffs, drive, wet/dry mix, and so on.

Want to rename them? Just double-click the control label and type something useful like “LPF Cutoff” instead of “Knob 3.”

Step 5: Fine-Tune the Controls

Don’t stop at basic mappings. Let’s make these knobs feel right.

Here are three tricks to dial them in:

• Invert behavior: Want your dry signal to go down as your wet signal goes up? Select the Smart Control and check the 'Invert' option in the Inspector.
• Set Min/Max ranges: If you don’t want your delay feedback to exceed 600%, cap it. Select the control, and set the Max to, say, 125%.
• Create macros: Want one knob to adjust two (or more) parameters? Click the knob, then choose Add Mapping. Click Learn, then move the second parameter. That’s it—you’ve got a macro.

This is where Smart Controls earn their name.

Step 6: Save It as a Preset

Once everything’s mapped and labeled, don’t lose it. Save it.

1. (Optional) Right-click the instrument and choose Remove if you want this preset to be effects-only.
2. In the channel strip, click the Settings menu, located above the EQ.
3. Choose Save Channel Strip Setting As…
4. Name it something like SynthFXPreset_01.

Now you’ve got a reusable effects+Smart Control rack you can pull up anytime.

Next time you load a synth, you just choose your preset, and everything’s ready to roll.

Step 7: Map Smart Controls to Your MIDI Controller

Want to twist knobs for real? Let’s make your controller talk to your Smart Controls.

Here’s how:

1. Click a Smart Control you want to assign (e.g., Hall Reverb amount).
2. In the Inspector, click External Assignment.
3. Twist or move the knob/fader on your MIDI controller.

It’s locked in. Now you can control that parameter live or record its movement as automation.

Step 8: Automate Smart Controls Like a Pro

Automation without plugin clutter? Yes, please.

1. Press A to open Automation view.
2. Select the parameter you want to automate (Smart Controls appear in the menu).
3. Draw in your moves or hit record and move them in real time.

And remember, each Smart Control may be controlling multiple parameters. So one automation lane can do a lot of work.

That’s a Wrap

You just built a customizable effects rig inside Logic. It’s fast. It’s flexible. And it’ll save you hours on future sessions.

Even better? You can reuse this setup for synths, drums, guitars, or anything else.

It’s not a gimmick. It’s a workflow upgrade.

Now load your favorite synth, pull up your new Smart Control preset, and start tweaking.

Welcome to your faster, smoother Logic Pro.

---
